Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
Todos os Produtos
-
Vidro de quartzo óptico
-
Usinagem de vidro de quartzo
-
Tubo de vidro de quartzo
-
Tubo Capilar de Quartzo
-
Tubo de vidro borossilicato
-
Vara de vidro de quartzo
-
Peças de reposição para laser
-
Alvo de pulverização de dióxido de silício
-
Aparelho de quartzo
-
Placa de vidro de quartzo
-
Peças de vidro personalizadas
-
Peças Cerâmicas Personalizadas
-
Equipamento de fabricação ótico
-
Tampa de vidro móvel que faz a máquina
-
Instrumento de medição ótico
-
Cristal ótico

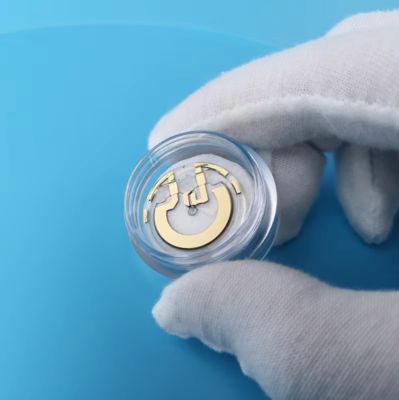

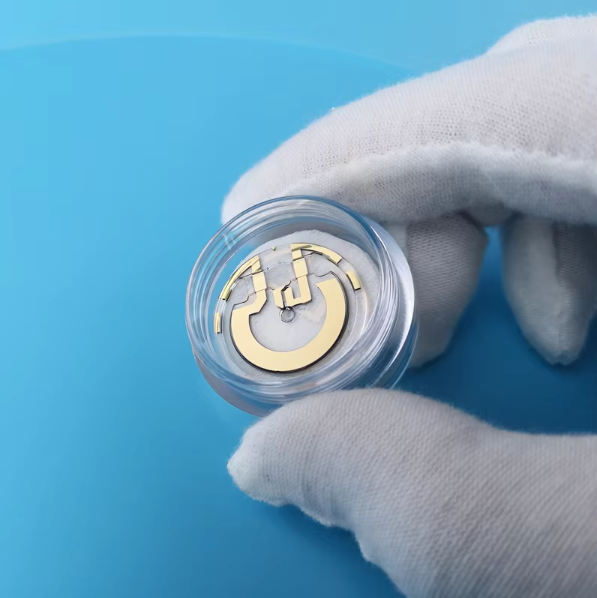

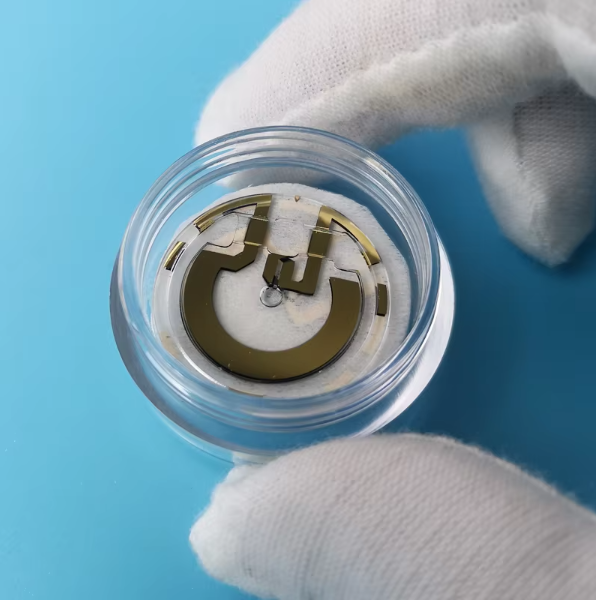

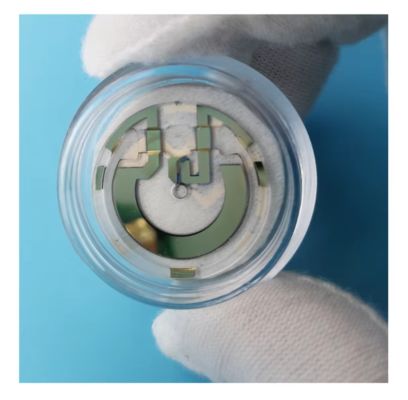

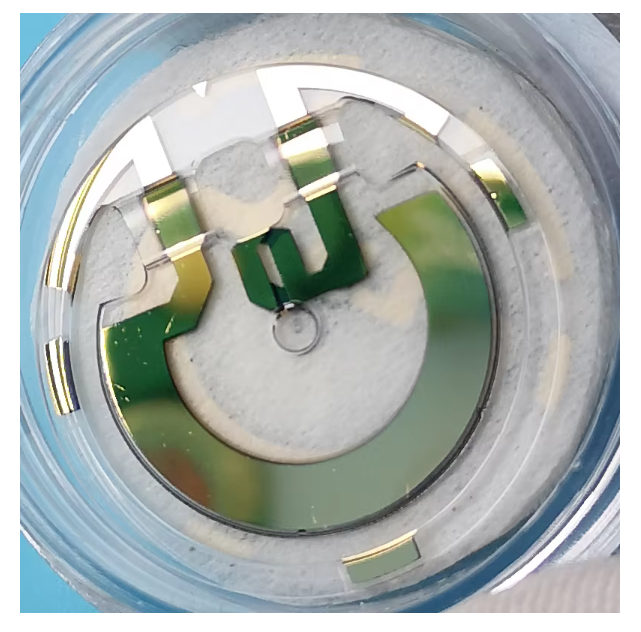

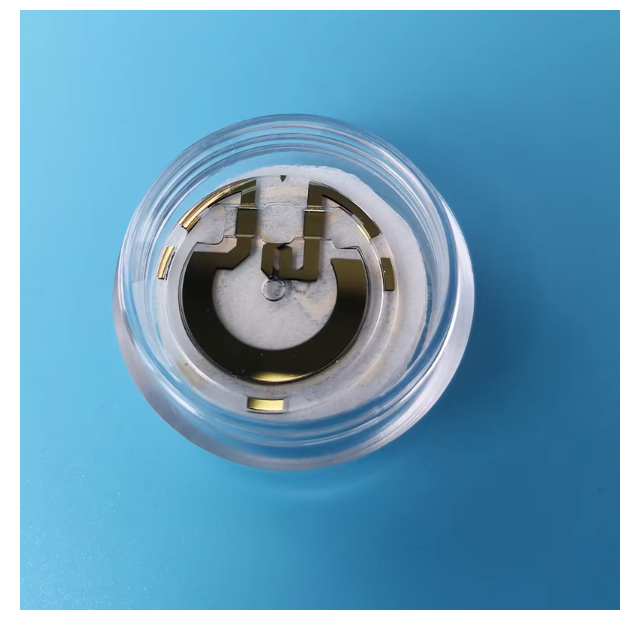

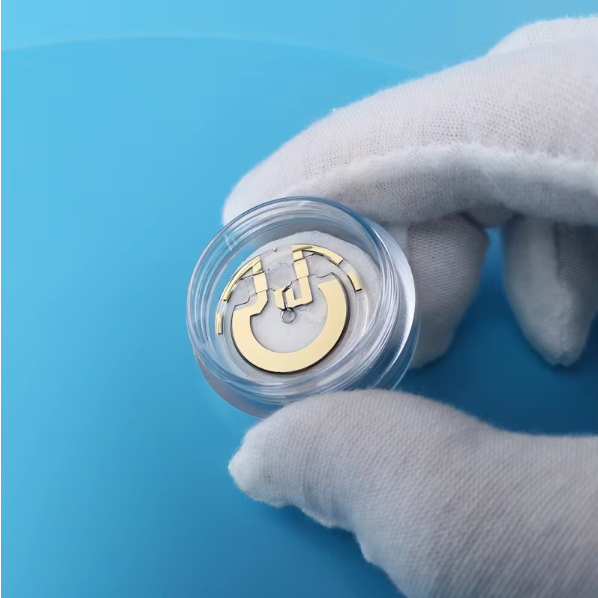

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| Lugar de origem | Shandong, China |
|---|---|
| Marca | ZKTD |
| Certificação | ISO 9001:2008, Rohs |
| Número do modelo | ZKTD-PO12 |
| Quantidade de ordem mínima | 5 pcs |
| Preço | USD 48/Pieces |
| Detalhes da embalagem | Carton, caixa de madeira, algodão pérola. |
| Tempo de entrega | 14 dias úteis |
| Termos de pagamento | L/c, t/t |
| Habilidade da fonte | 10000 peças/mês |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Destacar | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Descrição de produto
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |
Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
