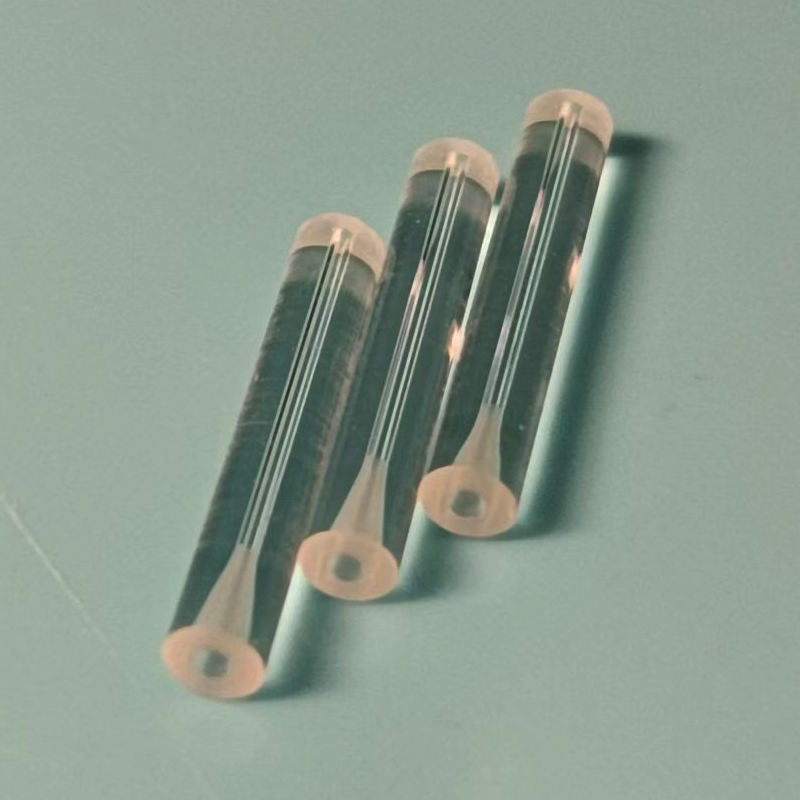

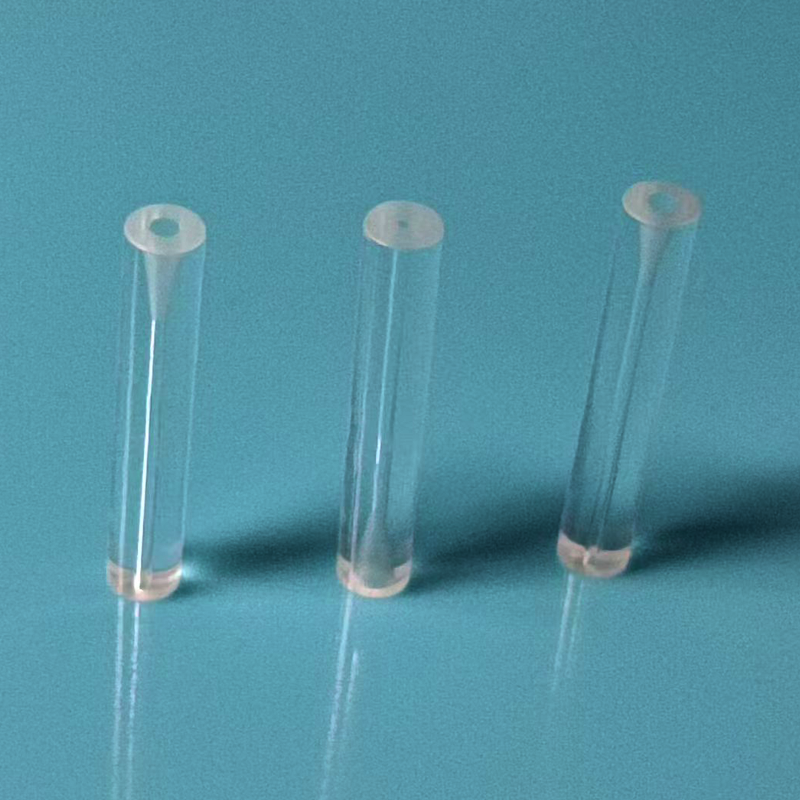

2x0.25x12mm Flared End Quartz Glass Tube For Optical Fiber Protection

Lugar de origem	China
Número do modelo	QT-FT-2x0,25x12

Detalhes do produto

Material	Sílica fundida de alta pureza (SiO2 > 99,99%)	Diâmetro Externo	2mm
Espessura da Parede	0,25mm	Comprimento	12mm
Temperatura de operação máxima	1100ºC	Projeto do tubo	Boca de sino alargada (uma extremidade ampliada)
Parede interna	Extremidades suaves, com furo preciso e sem rebarbas	Resistência Química	HF, ácidos fortes e álcalis, solventes orgânicos
Transmitância	Faixa UV-Visível	Pureza	Sem precipitação de íons metálicos
Aplicativo	Manga do conector de fibra, proteção de emenda de fusão, gerenciamento de fibra multinúcleo
Destacar	flared end quartz glass tube , 2x0.25x12mm quartz glass tube , Optical fiber protection quartz glass tube

Deixe um recado

Descrição de produto

Product Overview

The Quartz Flared Fiber Protection Tube (OD2mm x Wall 0.25mm x Length 12mm) is a precision-engineered micro component designed for bare fiber protection in optical communication devices. Manufactured from high-purity fused silica (SiO2 > 99.99%), it features a unique bell-mouth flared design that combines smooth fiber insertion with secure locking — protecting delicate bare fibers from mechanical damage, thermal stress, and environmental contamination.

Core Design: Flared Bell-Mouth Structure

Feature	Benefit
Flared Inlet (Large End)	Guides fiber threading smoothly, eliminating insertion resistance and preventing coating abrasion
Narrow Locking End (Small End)	Secures fiber in position, preventing pull-out and bending-induced core fracture
Burr-Free Precision Ends	Eliminates risk of fiber coating cut from sharp tube edges

Key Features

1100°C High Temperature Resistance: Replaces conventional heat-shrinkable sleeves under extreme thermal conditions, ideal for industrial base stations and power substations
Strong Acid & Alkali Resistance: Outstanding chemical durability against corrosive environments, ensuring long-term protection in harsh conditions
High Purity Without Metal Precipitation: SiO2 > 99.99% with zero ion leaching, preserving signal integrity in precision optical paths
UV Transmittance: Excellent optical clarity for UV-curable adhesive curing and visual fiber inspection
Precision Bore & Smooth Inner Wall: Tight diameter tolerance with low-friction inner surface for consistent fiber positioning

Applications

Application	Description
Fiber Connector & Pigtail Sleeves	Pre-installed inside FC/SC/LC connectors to protect fibers against pull stress and bending breakage during plugging/unplugging; ideal for optical modules and transceivers
Fusion Splice Joint Protection	Sealed tube encapsulates fusion splices to isolate damage from high heat, grease and moisture; widely used in high-temperature industrial base stations and power substations
Multi-Core Bundled Fiber Management	Flared opening gathers multiple bare fibers for neat cable routing; applied in optical splitters and fiber distribution boxes

Competitive Advantages

vs. Heat-Shrinkable Sleeves: Withstands 1100°C vs ~200°C limit; transparent quartz enables visual inspection without sleeve removal; zero outgassing in vacuum or high-temperature environments

vs. Ceramic Ferrules: Lighter weight with comparable hardness; UV-transparent for adhesive curing; precision bore with smoother inner wall finish; more cost-effective for high-volume deployment

vs. Plastic Protection Tubes: Superior thermal stability with no softening or deformation; excellent organic solvent resistance; long-term dimensional stability without yellowing or embrittlement

Specifications

Parameter	Value
Material	High Purity Fused Silica (SiO2 > 99.99%)
Outer Diameter	2mm
Wall Thickness	0.25mm
Length	12mm
Max Operating Temperature	1100°C
Design Type	Flared Bell-Mouth (One End Enlarged)
Chemical Resistance	HF, Strong Acid & Alkali, Organic Solvents
Inner Wall	Smooth, Precision Bore, Burr-Free Ends
Purity	No Metal Ion Precipitation
